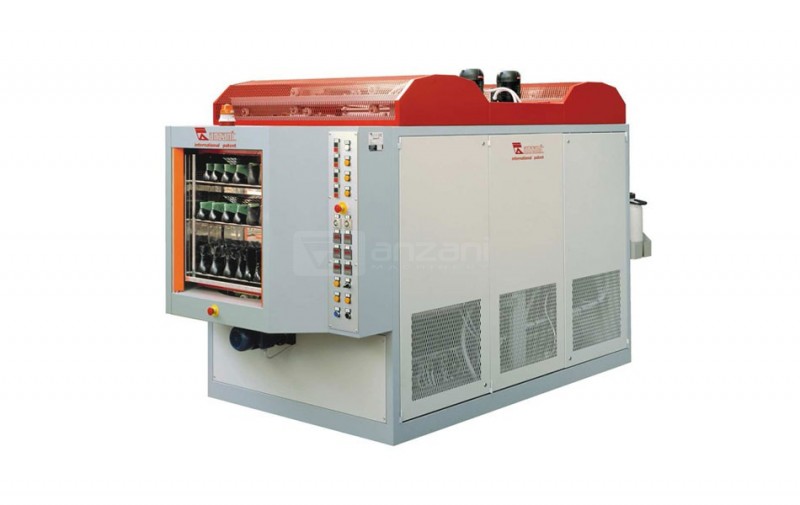

VTJ

Vacuum Heat Setter

VTJ is a vacuum system for ironing and stabilization of the upper on last, trough the following treatments:

  • Vacuum creation in hermetic chamber

  • High pressure steam input, for softening the upper

  • Ironing with hot forced air ventilation

  • Drying and stabilization in vacuum chamber

These 3 functions are carried out in 3 different treatment chambers. VTJ is available in three different versions: VTJ1000, VTJ2000, VTJ3000. The difference between the three solutions is the number of pairs, produced in 8 hours, respectively 1000, 2000 e 3000.

         Anzani's Surplus:

  • Excellent quality of the final result
  • Vacuum system
  • High production
  • Full regulation possibility
  • Made in Italy



Technical features
    VTJ 1000 VTJ 2000 VTJ 3000
Output in 8 hours Prs 1000 2000 3000
Rated Power Kw 20,3 43 50
Average Power Kw 15 25 28
Air Consumption NL 1 6 6
Water consumption Lt/hour 2 1 2
Dimensions mm 1800x1400x1630 3250x1400x1850 4500x1500x1900
Net weight Kg 800 1700 2100



Get the full catalogue here: http://www.anzanimachinery.it/en/98/newsletter.html

Documents

Enter Name and E-mail to download the pdf catalogs.

Consent to the processing of personal data as indicated on the our Privacy Policy.


Gallery
