Logimove Fully-automatic

Logimove Fully-automatic

Production Management System for Leather Goods Factories

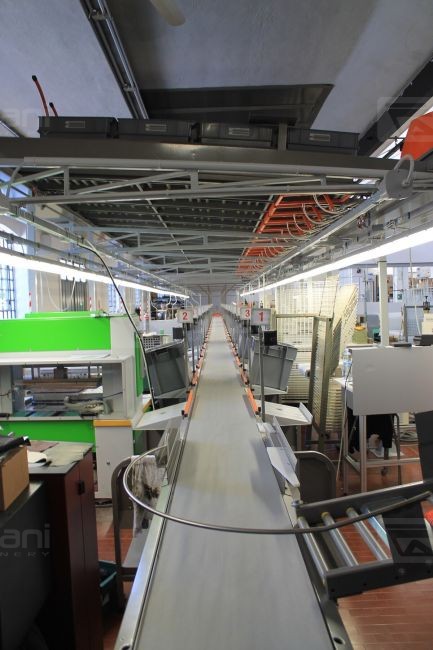

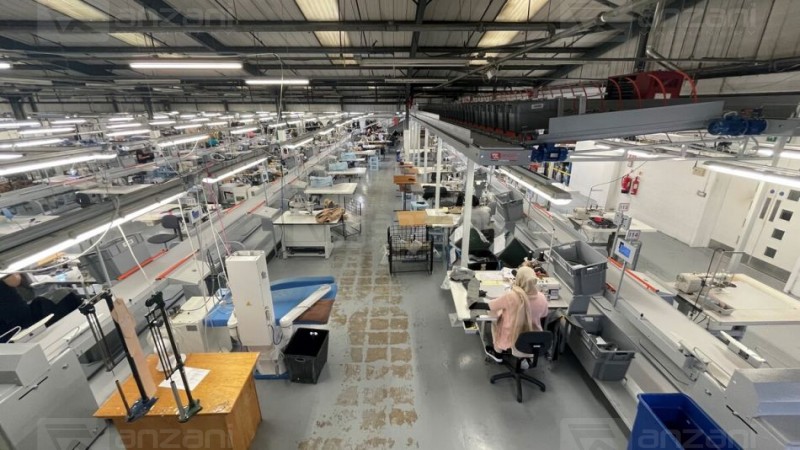

LOGIMOVE Fully-automatic is a production management system for leather goods factories, which provides for the distribution of boxes, equipped with bar codes, which contain the component kits to assemble bags or small leather goods. The system, automatically managed by software, knows which operator and which machine are present in each work station and which article is contained within each box, consequently it knows which operation can be carried out in each work station. The line manager loads the box at the start of the cycle, on the conveyor belt, the system autonomously delivers the box to the operator who has to carry out the first operation. Once the first operation is finished, the box is put back into circulation and sent to the workstation, where the next phase will take place, the same will happen for all phases, until the work cycle is completed and the box will be automatically unloaded out of the system.

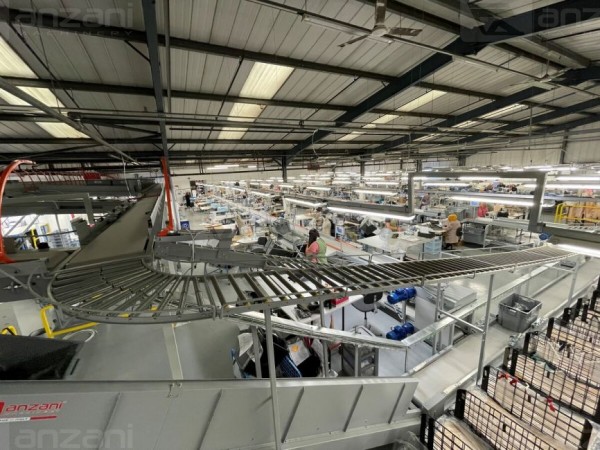

Logimove Fully-automatic is equipped with an overhead warehouse, which allows you to store the boxes and facilitate the workflow. In this way the boxes will never leave the system, until the uppers are completed, unless you want to perform a quality check, retrieving the boxes at any time.

Anzani's Surplus:

• Industry 4.0
• Great time saving
• Workstations saturation
• Control of the production time
• Never have to change the position of the stitching machines
• +20/30% Productivity increase
• Many models at the same time in production
• Zeroing of downtime
• Maximum production flexibility
• Made in Italy



Lt Ext. Dim. (mm) Int. Dim. (mm) Base Dim. (mm)
Boxes Capacity and Dimensions 40 550x380x250 515x340x247 500x330
50 600x400x300 560x370x297 530x340
70 600x400x400 560x370x397 530x340



Get the full catalogue here: http://www.anzanimachinery.it/en/98/newsletter.html

Watch the video: https://www.youtube.com/watch?v=Zi2GFe__8Ms&t
